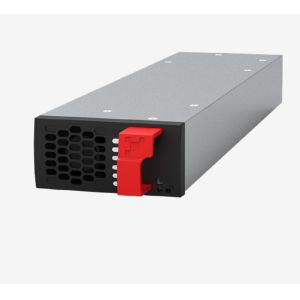

    CE+T Bravo 10-48/230 48Vdc 230Vac DC To AC Inverter Module T611730201 1.25KVA/1KW

    Ask Lasest Price
    Brand Name : CE+T
    Model Number : CE+T modular inverters
    Certification : CE,UL
    Price : 1 USD/pc
    Payment Terms : L/C,T/T
    Supply Ability : 1000 pieces / month
    Delivery Time : 6-8 weeks
    • Product Details
    • Company Profile

    CE+T Bravo 10-48/230 48Vdc 230Vac DC To AC Inverter Module T611730201 1.25KVA/1KW

    CE+T Modular inverter Bravo 10 - 48/230 48Vdc 230Vac ( Part No.T611730201) DC to AC modulr inbertersCE+T Bravo 10-48/230 48Vdc 230Vac DC To AC Inverter Module T611730201 1.25KVA/1KW

    CE+T Modular inverter Bravo 10 - 48/230 48Vdc 230Vac ( Part No.T611730201) DC to AC modulr inberters


    More than an inverter.


    Our patented technology provides additional AC input to supply loads directly from the grid.

    As a result, you benefit from a secure power supply with an overall conversion efficiency of up to

    96%.

    Our solutions are designed for modularity, reliability, compactness and cost savings

    Reach the highest reliability thanks to:

    0 ms transfer time (grid to battery);

    • Built-in Static Transfer Switch (no single point of failure);

    Truly redundant (power & communication);

    • Configuration in parallel (no master/slave)



    CE solutions (designed for 230 Vac and 3 x 400 Vac)

    Bravo 4 - 48/230Bravo 6 - 48/230Bravo 10 - 48/230Bravo ECI - 48/230Bravo ECI - 380/230Bravo ECI - 400/230
    DC In (Range)48 Vdc (40 – 60)48 Vdc (40 – 60)48 Vdc (40 – 60)48 Vdc (40 – 60)336 Vdc (200 – 400)372 Vdc (200 – 430)
    AC In/Out (Input Range)230 Vac (150 – 265)230 Vac (150 – 265)230 Vac (150 – 265)230 Vac (150 – 265)230 Vac (108 – 290)230 Vac (150 – 290)
    Output power0.5 kVA / 0.4 kW0.75 kVA / 0.6 kW1.25 kVA / 1 kW3 kVA / 2.4 kW3 kVA / 2.5 kW3 kVA / 2.5 kW
    Up to2.5 kVA3.75 kVA40 kVA2.7 MVA450 kVA450 kVA
    Efficiency: AC/AC92%94%96%96%96%96%
    Efficiency: DC/AC90%92%92.5%93.5%94.5%94.5%
    Operating temperature-20°C to 65°C-20°C to 65°C-20°C to 65°C-20°C to 65°C-20°C to 65°C-20°C to 65°C
    Dimension1U x 87 mm x 346 mm1U x 87 mm x 346 mm1U x 87 mm x 346 mm2U x 103 mm x 435 mm2U x 103 mm x 435 mm2U x 103 mm x 435 mm
    Part numberT641730201T651730201T611730201T521730301T521D70201T521D80201
    Part number (No AC In)N/AN/AN/AT521730311N/AN/A



    Industrial solutions (designed for 24 Vdc, 60 Vdc, 110Vdc and 220Vdc)

    TSI Bravo - 24/230TSI Bravo - 60/230TSI Bravo - 110/230TSI Bravo - 220/230
    DC In (Range)24 Vdc (19 – 35)60 Vdc (48 – 72)110 Vdc (90 – 160)220 Vdc (170 – 300)
    AC In/Out (Input Range)230 Vac (150 – 265)230 Vac (150 – 265)230 Vac (150 – 265)230 Vac (150 – 265)
    Output power1.5 kVA / 1.2 kW2.5 kVA / 2 kW2.5 kVA / 2 kW2.5 kVA / 2 kW
    Up to48 kVA80 kVA80 kVA80 kVA
    Efficiency: AC/AC95.5%96%96%96.5%
    Efficiency: DC/AC89.5%91%91%92.5%
    Operating temperature-20°C to 65°C-20°C to 65°C-20°C to 65°C-20°C to 65°C
    Dimension2U x 103 mm x 435 mm2U x 103 mm x 435 mm2U x 103 mm x 435 mm2U x 103 mm x 435 mm
    Part numberT321720201T321740201T321750201T321760201
